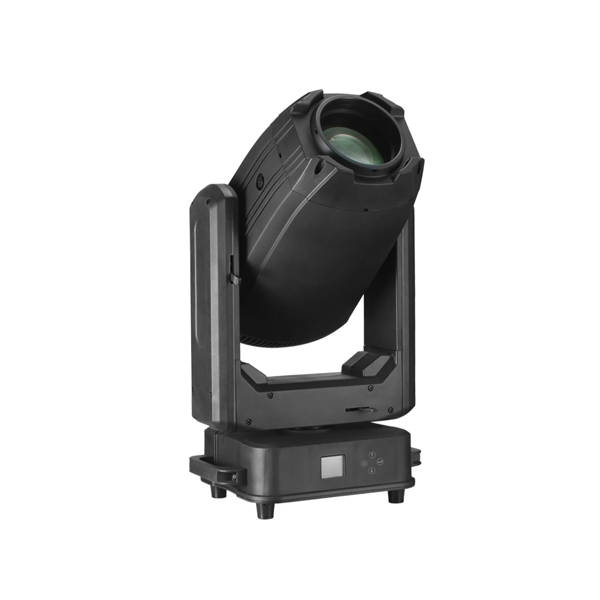

Event Lighting OUTBACK350H Outdoor Hybrid

$0.00

Introducing the OUTBACK350H from Event Lighting's OUTBACK Range - Built specifically to withstand outdoor conditions.

 The OUTBACK350H features a powerful 350W white LED source with an impressive 69,703 lux output at 5m (3° beam angle) delivering exceptional brightness with a crisp 8,000K colour temperature. Versatile colour capabilities include dual colour wheels, plus CMY+CTO colour mixing for precise colour control. The dual rotating gobo wheels offer extensive pattern options with indexing and shaking functions for dynamic effects. Control options include 3 and 5-pin DMX.

Introducing the OUTBACK350H from Event Lighting's OUTBACK Range - Built specifically to withstand outdoor conditions.

 The OUTBACK350H features a powerful 350W white LED source with an impressive 69,703 lux output at 5m (3° beam angle) delivering exceptional brightness with a crisp 8,000K colour temperature. Versatile colour capabilities include dual colour wheels, plus CMY+CTO colour mixing for precise colour control. The dual rotating gobo wheels offer extensive pattern options with indexing and shaking functions for dynamic effects. Control options include 3 and 5-pin DMX.

Specifications:



Photometrics

  • Light Source: 350w LED White

  • Beam Angle: 3° -38°

  • Output: 69,703 lux @ 5m / 8.2ft at 3°

  • CCT: 8,000K

  • CRI: >70 / 90 (optional)

  • Led lifespan: > 20,000 hour

Colour

  • 5 Colour + Open (first wheel)

  • 5 Colour + Open (second wheel)

  • Colour Mixing: CMY + CTO

Gobos

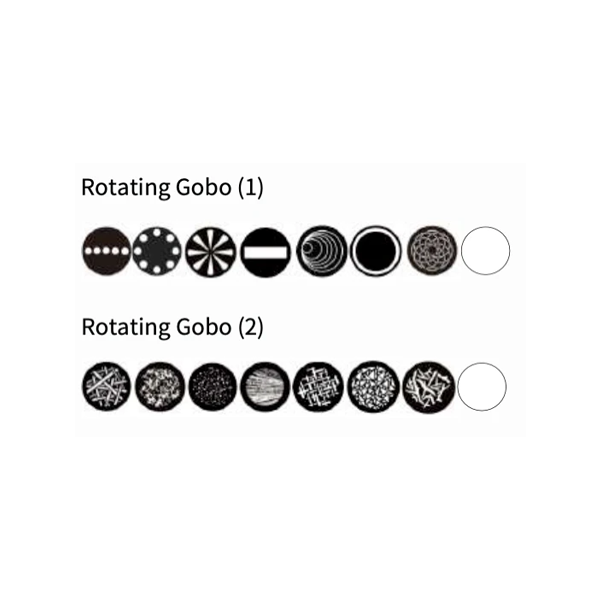

  • Rotating: 7 + Open (first wheel)

  • Rotating: 7 + Open (second wheel)

  • Gobo Shaking: Yes

  • Gobo Indexing: Yes

Effects

  • Dimming: 0~100%

  • Strobe: 1 - 25 Hz

  • Zoom: Motorised 3° to 38°

  • Prism (1): 4-Facet circular prism, indexing

  • Prism (2): 4-Facet linear prism, indexing

  • Frost: Yes

Movement

  • 16-bit resolution

  • Auto repositioning

  • Pan: 540°

  • Tilt: 270°

Power

  • Max power consumption: 500W

  • Input Voltage: 100~240V AC, 50/60Hz

  • Connection: True1 in/out

Control

  • Control Protocol: DMX512, RDM

  • WDMX Included

  • DMX Channels: 27 / 30

  • Interface: 3-pin/5-pin XLR in/out

  • Display: TFT control panel

Housing

  • Materials: ABS & Steel, matte black finish

  • Protection: High temperature automatic protection

  • IP rating: IP65

  • Dimensions: 412 x 610 x 254mm / 16.2” x 24.0” x 10.0”

  • Weight: 20.0 kg / 44 lbs
