Event Lighting EVENTTUBEKIT

$0.00

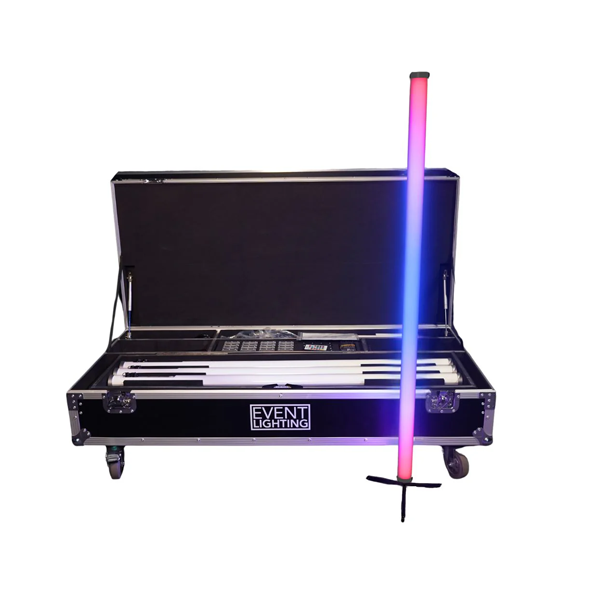

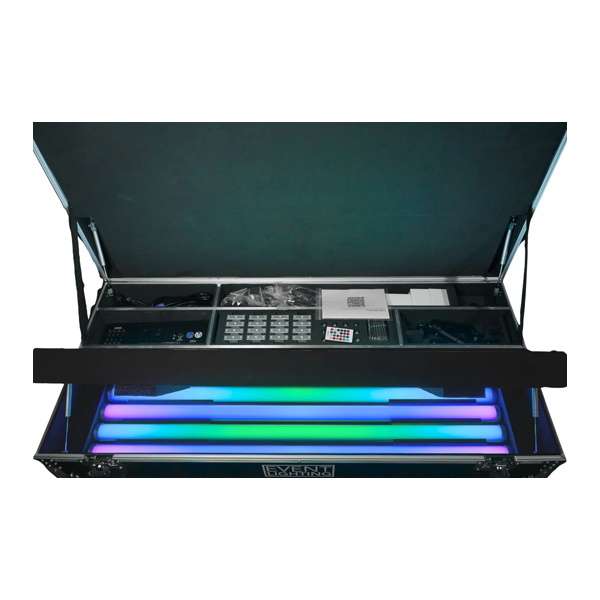

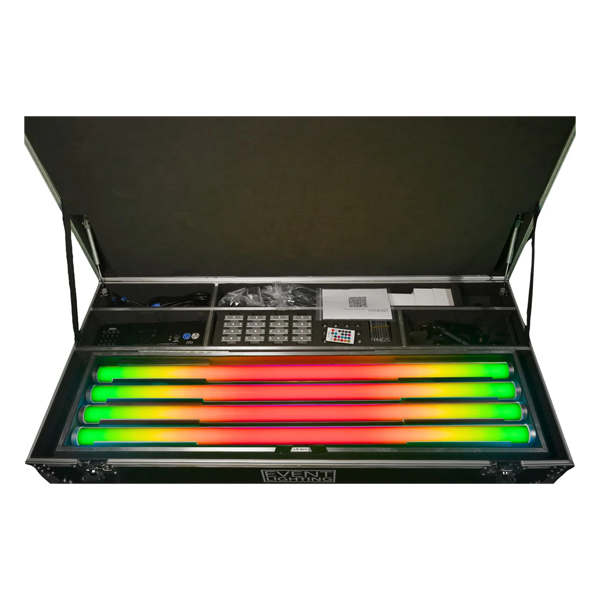

The EVENTTUBEKIT is the ultimate all-in-one lighting solution for film and event production. This professional road case contains 8 high-performance, battery-powered IP65 RGBW LED tubes, ready for any location, indoors or out.

Each tube features 288 RGBW 4-in-1 LEDs and advanced 32-segment pixel control for dynamic, complex effects. Enjoy 20 hours of max battery life and versatile control options, including DMX512, WDMX, Mobile App (WiFi), and IR Remote.

The kit is complete with every accessory you need: a Power Box for consolidated charging, multiple DMX cables and remotes, and a comprehensive selection of 16 clamps, 16 tube holders, floor stands, and various mounting plates for limitless rigging possibilities. Ready to deploy right out of the case, the EVENTTUBEKIT delivers power, precision, and complete portability.

The EVENTTUBEKIT is the ultimate all-in-one lighting solution for film and event production. This professional road case contains 8 high-performance, battery-powered IP65 RGBW LED tubes, ready for any location, indoors or out.

Each tube features 288 RGBW 4-in-1 LEDs and advanced 32-segment pixel control for dynamic, complex effects. Enjoy 20 hours of max battery life and versatile control options, including DMX512, WDMX, Mobile App (WiFi), and IR Remote.

The kit is complete with every accessory you need: a Power Box for consolidated charging, multiple DMX cables and remotes, and a comprehensive selection of 16 clamps, 16 tube holders, floor stands, and various mounting plates for limitless rigging possibilities. Ready to deploy right out of the case, the EVENTTUBEKIT delivers power, precision, and complete portability.

Specifications:

Photometrics

  • Light Source: 288 pcs x 0.3W RGBW 4in1 LEDs (per Tube)

  • Beam Angle: 180˚

  • Pixel Control: 32-segment

  • Colours: 16.7 million colours (0~100% Saturation Dimming)

  • LED Lifespan: 50,000 Hours

Effects

  • Dimmer from 0~100% Linear dimming

  • Strobe: 1~20 Hz

Power

  • Power Consumption: 50W

  • Charging Voltage: DC12.6V/2A

  • Battery Specification: 12.6V / 18Ah (21,700 4.2V / 4.5Ah*12 cells)

  • Charge Time: 8-10 Hours (Approx.)

  • Battery Charges: ≥300 times

  • Battery Life: 20 Hours (Max.)

Control

  • Control Options: DMX512, WDMX, Mobile App WiFi Control, IR Remote, Auto, Manual, Sound Active, Master/Slave

  • DMX Modes: 2 / 4 / 6 / 11 / 32 / 64 / 128 CH

  • 2.4G Communication Distance: 200m (218.7yd)

  • Wifi Communication Distance: 30m (32.8yd)

  • Band: 2.4G ISM, 126 Channel Frequencies

  • Maximum Transmit Power: 20dBm

  • Receiver Sensitivity: -94dBm

Housing

  • Cooling: Convection Cooling System

  • IP Rating: IP65

  • Temperature Protection: 60˚C / 140˚F

  • Dimensions (Total): 1380 x 630 x 400mm / 54.3" x 24.8" x 15.7"

  • Weight (Total): 45kg / 99lbs 3.3oz

  • Dimensions (Per Tube): ⌀52 x 1190mm / ⌀2.1" x 46.8"

  • Weight (Per Tube): 1.72kg / 3lbs 12.7oz

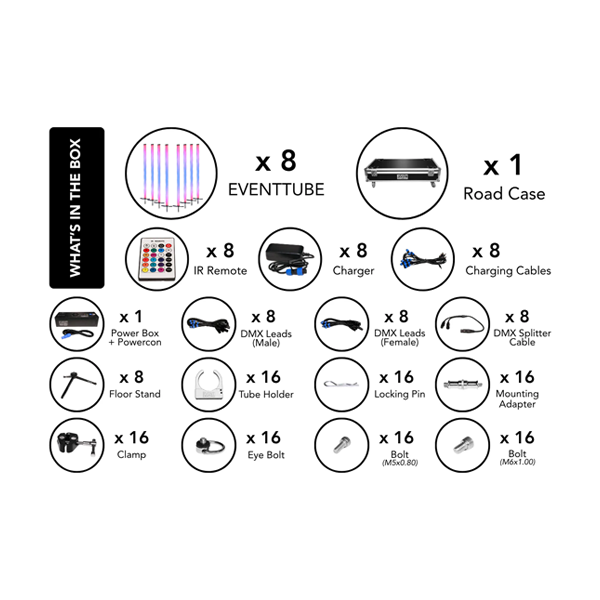

Included Accessories:

  • Mounting & Rigging Essentials:

    • 16 x Tube Holder

    • 8 x Floor Stand

    • 16 x Mounting Adaptor

    • 8 x Wing Plate

    • 2 x Cross Plate

    • 16 x Attaching Clamp

    • 16 x Eye-bolt

    • 16 x M5x0.80 Bolt

    • 16 x M6x1.00 Bolt

  • Power & Connectivity:

    • 8 x Chargers and 8 x Charging Cables

    • 1 x Power Box (for Consolidated Charging)

    • 16 x DMX Cables (8 x Male, 8 x Female)

    • 8 x DMX Splitter Cables
