Decimator MD-HX HDMI/ (3G/HD/SD)-SDI Cross Converter

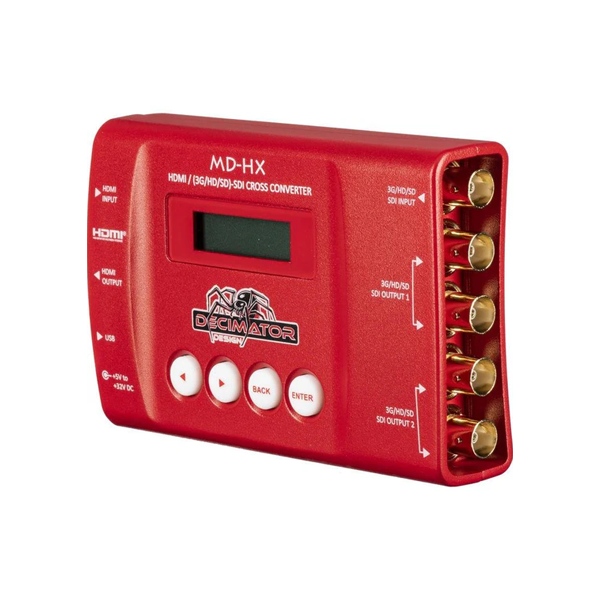

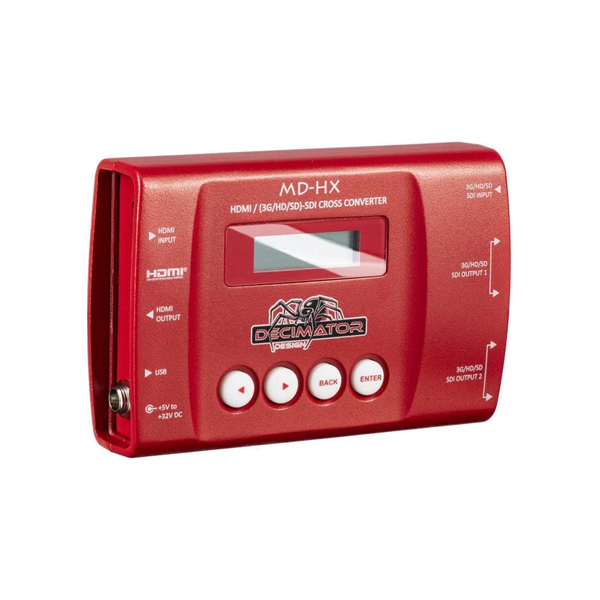

The DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The MD-HX features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard. The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.
The DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The MD-HX features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard. The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.
The DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The MD-HX features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard. The MD-HX features one HDMI output and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.
Specifications:
Inputs HDMI: 1 x Type A SD/HD.3G-SDI: 1 x BNC
Outputs HDMI: 1 x Type A SD/HD.3G-SDI: 4 x BNC (2 x Active Loop Through or addition outputs, 2 x output)
SDI Formats Supported
3G: SMPTE 424M 2.97 and 2.967 Gb/s 1080p: 60/59.94/50Hz
HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s 1080i: 60/59.94/50 Hz 1080p/psf: 30/29.97/25/24/23.98 Hz 720p: 60/59.94/50/30/29.97/25/24/23.98 Hz
SD: SMPTE 259M 270 Mb/s 525i: 59.94 625i: 50
Control Buttons
SDI output source from HDMI IN, SDI IN,Scaler
SDI output 1 is loop
HDMI output type and source from HDMI IN,
SDI IN, Scaler
Scaler source, reference, format and Aspect Controls
Audio pair routing for HDMI and SDI output
LCD backlight off time
Back to Status time
Power 5 to 32 VDC Pin Positive
Dimensions 3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm
